Pride Jazzy EVO 613 Power Chair
$3,749.00
The Pride Jazzy® EVO 613 is a mid-wheel-drive power chair with a narrow base only 22″ wide and a 22″ turning radius, so it gets through small spaces, doorways and tight corners indoors. Pride’s patented Active-Trac® (ATX) Suspension and Mid-Wheel 6® Technology give a smoother, stable ride, and top speed reaches up to 5.1 mph. A depth-adjustable, limited-recline memory foam high-back seat swivels on a single seat post. Batteries included (installed).
FREE in-home delivery within 200 miles of our Orlando location, or FREE shipping to your front door anywhere else.
Features
- 300 lbs. weight capacity
- Narrow base width of only 22″
- Maximum speed up to 5.1 mph
- 22″ turning radius
- 3″ ground clearance
- 13″ solid mid-wheel drive tires
- Up to 14 miles per charge at 300 lbs.; up to 17.1 miles at 200 lbs. (U1 sealed lead-acid batteries)
- Mid-Wheel 6® Technology offers a tight turning radius around doorways and corners
- Pride’s patented Active-Trac® (ATX) Suspension for a smooth ride over uneven surfaces
- Depth-adjustable, limited-recline memory foam high-back seat; single seat post lets you swivel
- Height-, width-, depth- and angle-adjustable armrests
- GC3 controller with quick disconnect
- Flip-up foot platform, adjustable for height, angle and depth
- Removable matte-finish color-through shrouds
- Convenient access to the controller and batteries while you stay seated
This product is an FDA Class II Medical Device designed to aid individuals with mobility impairments.
Seat Options
Choose from three Depth-Adjustable Memory Seats with limited recline, all included at no extra charge: 16″W x 16-18″D, 18″W x 18-20″D or 20″W x 18-20″D. Every seat has adjustable-height arms and a 60″ lap belt.
Color Options

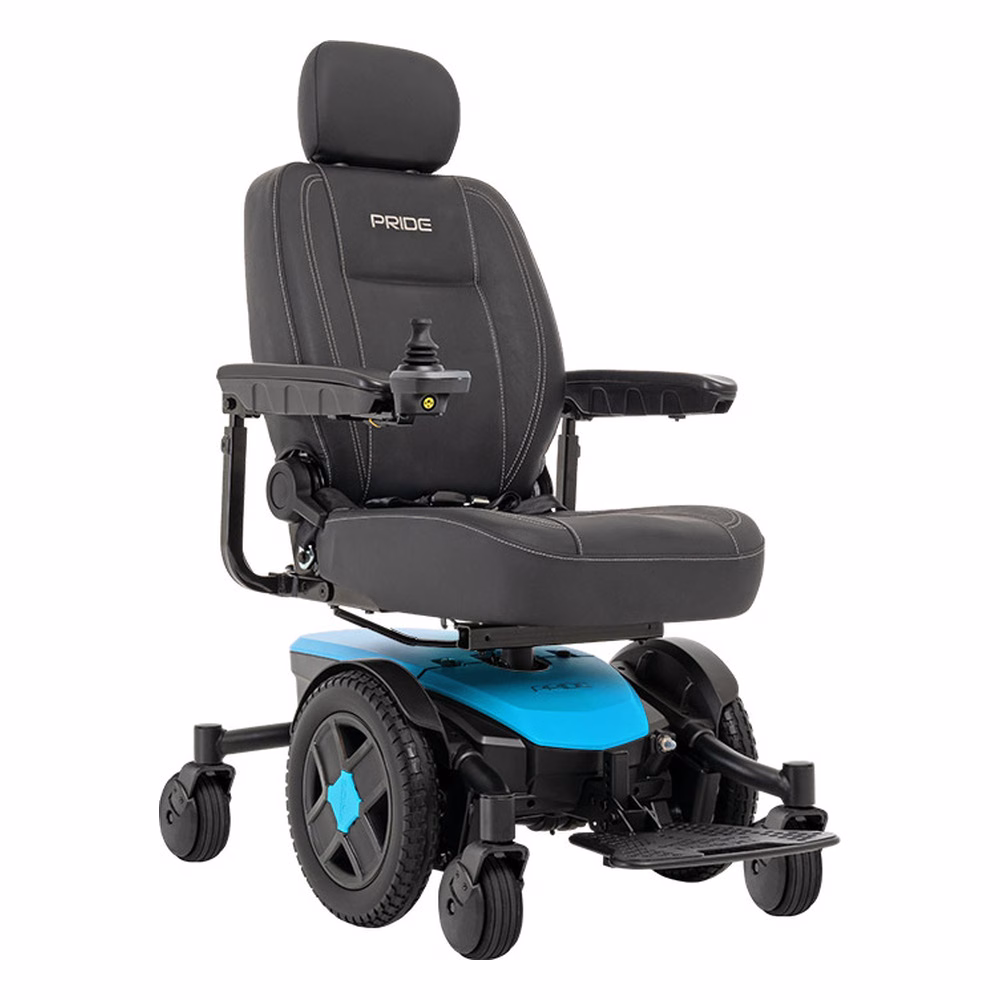

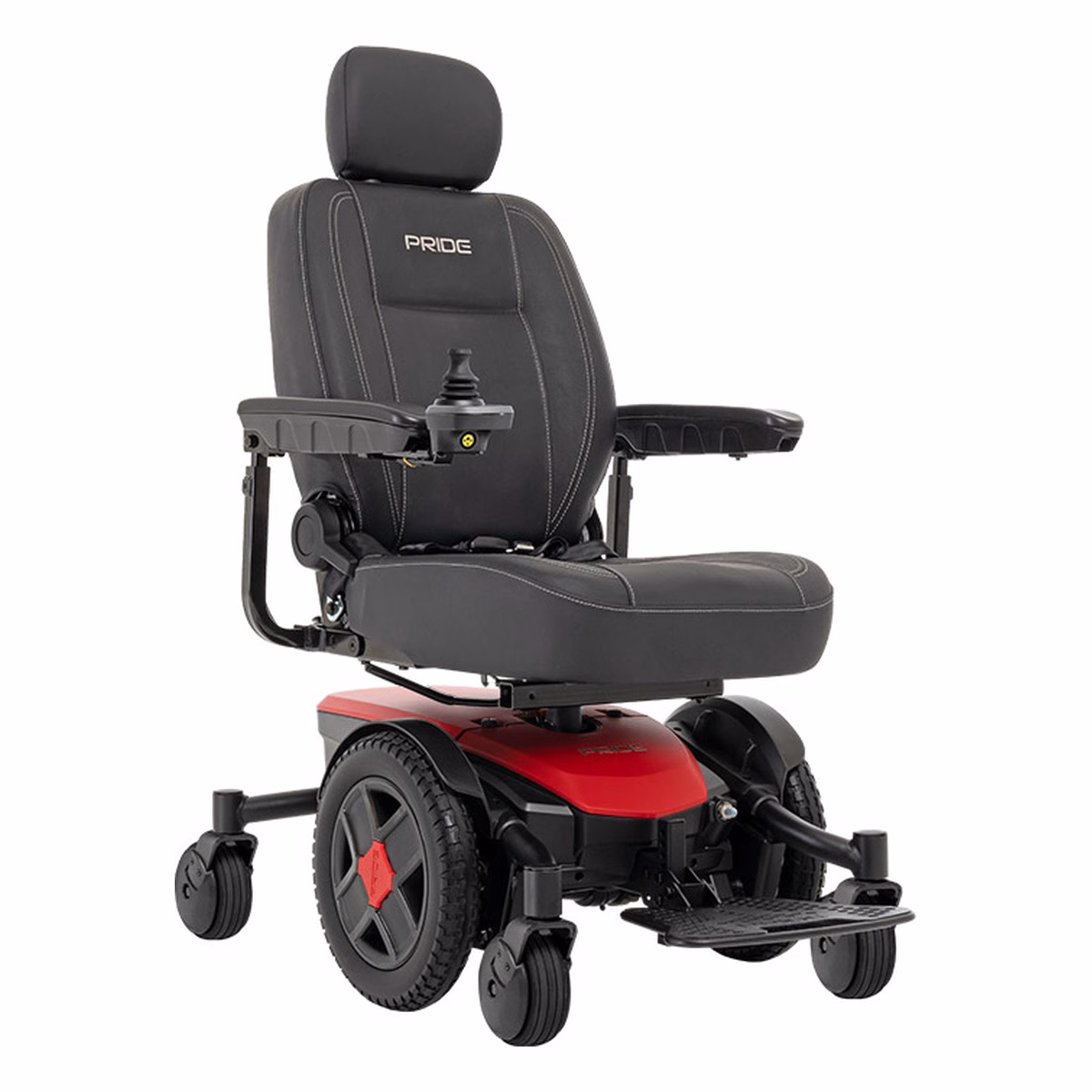

Choose your shroud color at no extra charge: Cardinal Red, Iceberg Blue, Robin’s Egg, Sugarplum or Black, all in a matte finish.
Batteries Included
Batteries included (installed): two 12-volt U-1 AGM batteries.
Specifications
| Model | Jazzy® EVO 613 (sealed lead-acid) |
|---|---|
| Model Number | JEVO613-SLA |
| Weight Capacity | 300 lbs. |
| Maximum Speed | Up to 5.1 mph |
| Per-Charge Range | Up to 14 miles at 300 lbs.; up to 17.1 miles at 200 lbs. |
| Turning Radius | 22″ |
| Overall Width | 22″ |
| Overall Length | 41″ with footplate; 35″ without footplate |
| Ground Clearance | 3″ at motor bracket |
| Seat-to-Floor Range | 19.75″ – 21.25″ |
| Standard Seat Sizes | High-back, black vinyl: 16″ x 16-18″; 18″ x 18-20″; 20″ x 18-20″ |
| Seat Weights | 46 lbs. (16″); 48 lbs. (18″); 50 lbs. (20″) |
| Drive Wheels | 13″ solid |
| Front Wheels | 5″ solid casters |
| Rear Wheels | 5″ casters |
| Drivetrain | Two motor, in-line, mid-wheel drive |
| Braking System | Regenerative and electro-mechanical |
| Suspension | Active-Trac® (ATX) with Mid-Wheel 6® Technology |
| Standard Electronics | 40A, PG GC3 |
| Batteries | (Two) 12-volt U-1, sealed lead-acid, non-spillable deep-cycle (AGM or gel cell) |
| Battery Weight | 23.5 lbs. each |
| Battery Charger | 3.5A, off-board |
| Weight of Heaviest Piece | 94 lbs. (base) |
| Weight Without Batteries | 142 lbs. |
| Total Weight | 189 lbs. (base, 18″ seat and batteries) |
| Maximum Rated Slope | 6° (10.5%) |
| Maximum Obstacle Climbing | 1.75″ |
| Colors | Cardinal Red, Iceberg Blue, Robin’s Egg, Sugarplum, Black (all matte) |
| Warranty | Frame: 5-year limited; drivetrain: 13-month limited; electronics: 13-month limited; batteries: 13-month limited |
| HCPCS | Group 2: Standard (K0822/K0823) |
